Description

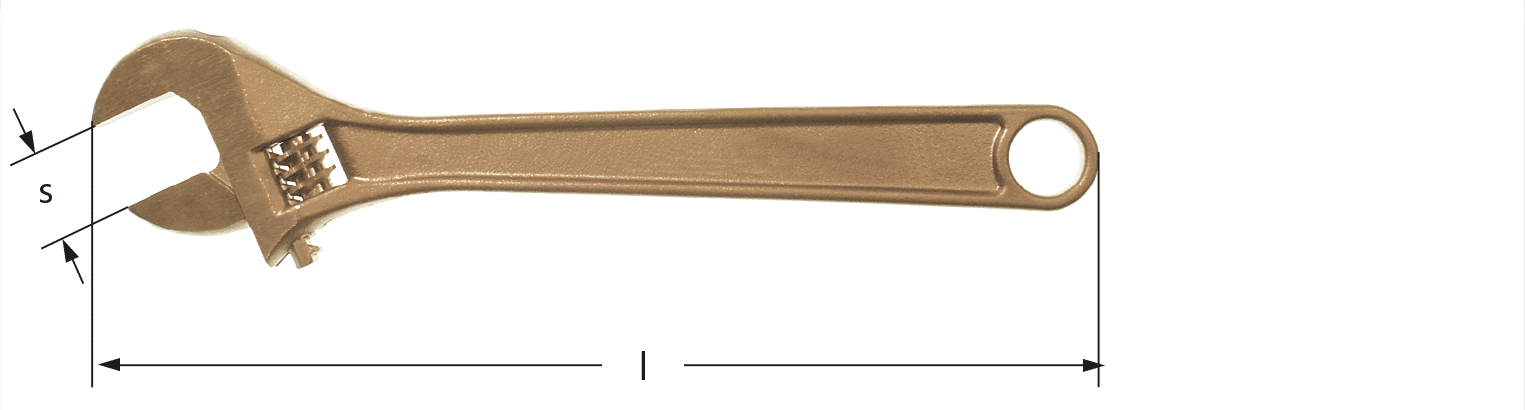

Adjustable end wrench

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 100 g
Dimensions 150 mm
Material

AlBz, BeCu

Size (mm)

150, 200, 250, 300, 380, 450, 600

L inch

6, 8, 10, 12, 15, 18, 24

S max mm

19, 25, 30, 36, 44, 55, 65

S max inch

3/4, 1, 1.3/16, 1.3/8, 1.3/4, 2.3/16, 2.9/16

Metric/Imperial Units

mm

Adjustable end wrench

SKU: AT0150A

Description

Adjustable end wrench

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 100 g
Dimensions 150 mm
Material

AlBz, BeCu

Size (mm)

150, 200, 250, 300, 380, 450, 600

L inch

6, 8, 10, 12, 15, 18, 24

S max mm

19, 25, 30, 36, 44, 55, 65

S max inch

3/4, 1, 1.3/16, 1.3/8, 1.3/4, 2.3/16, 2.9/16

Metric/Imperial Units

mm

Material

Size

Material

L inch

S max mm

S max inch

l (mm)

(g)

Part No

Add to wishlist for Quote

Material: AlBz
Size (mm): 150
L inch: 6
S max mm: 19
S max inch: 3/4
L (mm): 150
(g): 100
Part No.: AT0150A
Add to quote:
Material: BeCu
Size (mm): 150
L inch: 6
S max mm: 19
S max inch: 3/4
L (mm): 150
(g): 100
Part No.: AT0150B
Add to quote:
Material: AlBz
Size (mm): 200
L inch: 8
S max mm: 25
S max inch: 1
L (mm): 200
(g): 200
Part No.: AT0200A
Add to quote:
Material: BeCu
Size (mm): 200
L inch: 8
S max mm: 25
S max inch: 1
L (mm): 200
(g): 200
Part No.: AT0200B
Add to quote:
Material: AlBz
Size (mm): 250
L inch: 10
S max mm: 30
S max inch: 1.3/16
L (mm): 250
(g): 313
Part No.: AT0250A
Add to quote:
Material: BeCu
Size (mm): 250
L inch: 10
S max mm: 30
S max inch: 1.3/16
L (mm): 250
(g): 313
Part No.: AT0250B
Add to quote:
Material: AlBz
Size (mm): 300
L inch: 12
S max mm: 36
S max inch: 1.3/8
L (mm): 300
(g): 567
Part No.: AT0300A
Add to quote:
Material: BeCu
Size (mm): 300
L inch: 12
S max mm: 36
S max inch: 1.3/8
L (mm): 300
(g): 567
Part No.: AT0300B
Add to quote:
Material: AlBz
Size (mm): 380
L inch: 15
S max mm: 44
S max inch: 1.3/4
L (mm): 380
(g): 1275
Part No.: AT0380A
Add to quote:
Material: BeCu
Size (mm): 380
L inch: 15
S max mm: 44
S max inch: 1.3/4
L (mm): 380
(g): 1275
Part No.: AT0380B
Add to quote:
Material: AlBz
Size (mm): 450
L inch: 18
S max mm: 55
S max inch: 2.3/16
L (mm): 450
(g): 2500
Part No.: AT0460A
Add to quote:
Material: BeCu
Size (mm): 450
L inch: 18
S max mm: 55
S max inch: 2.3/16
L (mm): 450
(g): 2500
Part No.: AT0460B
Add to quote:
Material: AlBz
Size (mm): 600
L inch: 24
S max mm: 65
S max inch: 2.9/16
L (mm): 600
(g): 5500
Part No.: AT0600A
Add to quote:
Material: BeCu
Size (mm): 600
L inch: 24
S max mm: 65
S max inch: 2.9/16
L (mm): 600
(g): 5500
Part No.: AT0600B
Add to quote:
